How Does it Work?

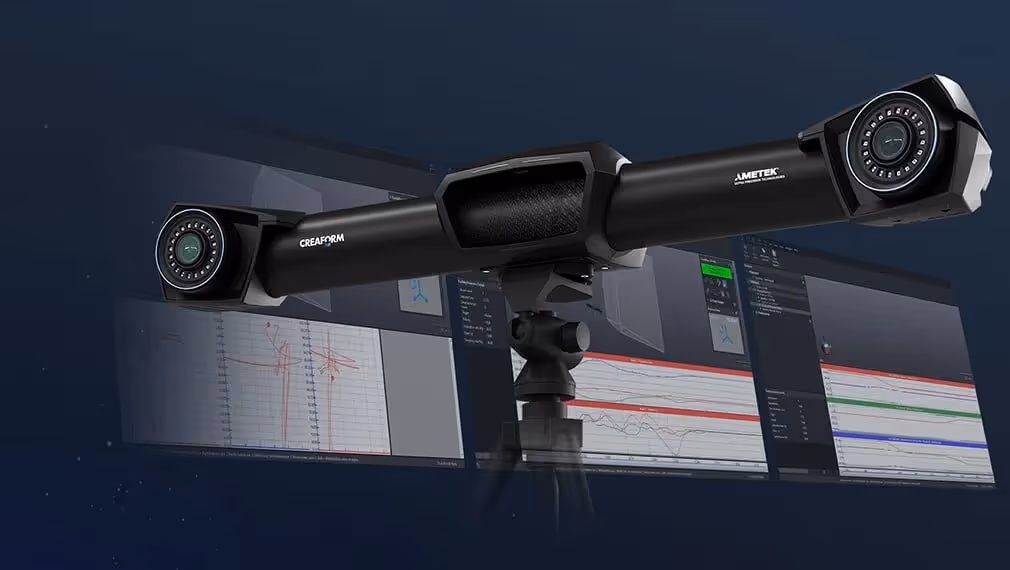

How does it work? VXtrack relies on small, lightweight reflectors that you will position on your product or equipment. The C-Track product has multiple cameras that will track these reflectors, and the VXtrack software will compile all of the information and provide dynamic 3D models of the reflectors’ position in time.
Once compiled, you can view a 3D inspection file or a 3D dynamic measurement file.
VXtrack is a smart, simple, versatile way to get more data out of your scans.
Benefits of VXtrack
- Even better accuracy and measurement repeatability.
- Perform accurate, real-world simulations and gather meaningful data.
- The best way to perform dynamic analyses with your Creaform 3D scanners.
- Reflectors can be used with large or small equipment, and are designed to fit your equipment/ product needs. The reflectors are lightweight, easy to install, and come in various mounting options (from magnets to adhesives).
Simplicity and Versatility, Extended
Any Creaform 3D scanner can be used without the accompanying VXtrack software, but this software just further enhances the versatility and simplicity of their brochure of scanners. Using a Creaform scanner without this added software package will only give you a static image of your part, which is fine in a lot of cases — but the addition of this software only adds more power and functionality to each of your scanners.
How VXtrack Is Commonly Used
Where do different industries currently use VXtrack? Here are a few scenarios that we’ve heard of:
Aerospace
- Control assembly dimensions and check for discrepancies
- Get detailed deformation results from loads applied to the landing gears, tires, wings, and fuselage
Biomechanics/Medical
- Check the functionality of any new, articulating medical device
- Perform fast, dynamic CMM analysis
Automotive
- Get high-precision data on running parts like spinning wheels, revving engine blocks, and exhaust systems
- Check for clearances on closing doors and hoods, and confirm that the designed tolerances are acceptable
- Perform full-scale crash tests and get deformation data from the chassis and seats
Robotics
- A pivotal tool for on-site calibration and assessment
- Capture data and perform real-time course corrections
- Orchestrate automation within assembly tasks
Technical Specifications
| |
C-Track™ |
C-Track™|Elite |
| |
9.1 m3 |
16.6 m3 |
9.1 m3 |
16.6 m3 |
| Measurement rate (reflectors/s) |
Up to 6,600 |
Up to 6,600 |
| Repeatability |
0.013 mm
(0.0005 in)
|
0.020 mm
(0.0008 in)
|
0.010 mm
(0.0004 in)
|
0.015 mm
(0.0006 in)
|
| Volumetric accuracy |
0.068 mm
(0.0026 in)
|
0.100 mm
(0.004 in)
|
0.050 mm
(0.002 in)
|
0.075 mm (0.003 in) |
- Rate of up to 6,600 3D points per second
- 6 DOF measuring (position and orientation) of a rigid set of reflectors
- Synchronous measurement of the reflector set
- Measuring volume from 9.1 to 16.6 m3 (320 to 586 ft3)
- One unique system for 3D inspection and 3D dynamic measurement
- Real-time curve display in VXelements
- Export to .csv format
- API for interfacing with third-party applications
- Acquisition synchronization capability through external trigger input
