3D Printer

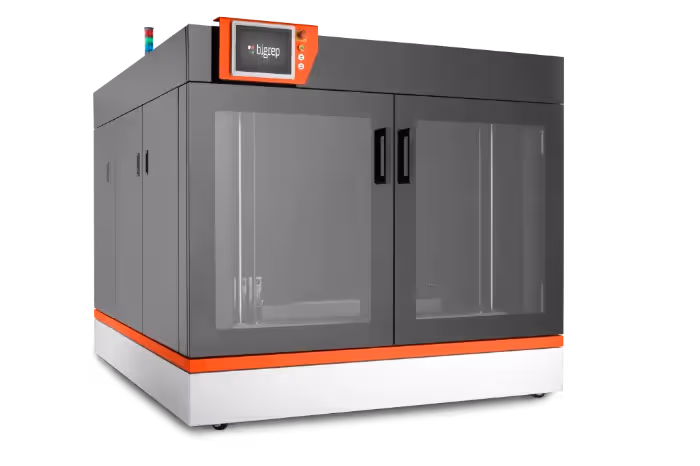

BigRep Pro

The BigRep Pro is a standalone FDM 3D printer that can achieve something that very few printers can: creating massive, accurate, and repeatable parts. This German-engineered 3D printer comes with the accuracy and build quality that you would expect. It uses Bosch parts to achieve a high-quality 3D gantry that works overtime.

This printer can run 24/7 without any issues. All the while, it will create production-grade parts that are dimensionally accurate. Many companies will use the BigRep Pro to completely replace their traditional manufacturing methods. This printer alone can handle massive throughput, thanks to its build volume of nearly a cubic meter.

The BigRep Pro is also a very professionally-looking 3D printer, so it will fit into any existing workspace. This machine requires very little background knowledge, and it’s simple to run. The extruders and build plate can be easily swapped out between prints, cutting down on your overall production time.

This machine is a great way to replace any high-cost production and simplify your supply chain. By bringing your plastic production in-house, you have more say over the final quality, cost, and turnaround time of your parts.

Contact About This Product

BigRep Pro

The BigRep Pro is a standalone FDM 3D printer that can achieve something that very few printers can: creating massive, accurate, and repeatable parts. This German-engineered 3D printer comes with the accuracy and build quality that you would expect. It uses Bosch parts to achieve a high-quality 3D gantry that works overtime.

This printer can run 24/7 without any issues. All the while, it will create production-grade parts that are dimensionally accurate. Many companies will use the BigRep Pro to completely replace their traditional manufacturing methods. This printer alone can handle massive throughput, thanks to its build volume of nearly a cubic meter.

The BigRep Pro is also a very professionally-looking 3D printer, so it will fit into any existing workspace. This machine requires very little background knowledge, and it’s simple to run. The extruders and build plate can be easily swapped out between prints, cutting down on your overall production time.

This machine is a great way to replace any high-cost production and simplify your supply chain. By bringing your plastic production in-house, you have more say over the final quality, cost, and turnaround time of your parts.

Contact About This Product

BigRep Pro

The BigRep Pro is a standalone FDM 3D printer that can achieve something that very few printers can: creating massive, accurate, and repeatable parts. This German-engineered 3D printer comes with the accuracy and build quality that you would expect. It uses Bosch parts to achieve a high-quality 3D gantry that works overtime.

This printer can run 24/7 without any issues. All the while, it will create production-grade parts that are dimensionally accurate. Many companies will use the BigRep Pro to completely replace their traditional manufacturing methods. This printer alone can handle massive throughput, thanks to its build volume of nearly a cubic meter.

The BigRep Pro is also a very professionally-looking 3D printer, so it will fit into any existing workspace. This machine requires very little background knowledge, and it’s simple to run. The extruders and build plate can be easily swapped out between prints, cutting down on your overall production time.

This machine is a great way to replace any high-cost production and simplify your supply chain. By bringing your plastic production in-house, you have more say over the final quality, cost, and turnaround time of your parts.

Contact About This Product

Technical Features

Accuracy:

Volumetric Accuracy:

Measurement resolution:

Measurement rate:

Part size range (recommended):

ISO 17025 Accreditation

Scan-to-mesh in seconds

Worldwide Support

Patented Technology

Patented Technology

3D Printing Technology: Fused Deposition Modeling (FDM)

Build Volume (X x Y x Z, mm):  1020 x 970 x 985 mm

Build Accuracy: as low as 0.002mm/mm

Layer Thickness: 0.03 mm

Compatible Printing Materials: BigRep PLA, BigRep HI-TEMP, BigRep HI-TEMP CF, BigRep PRO HT, BigRep PETG, BigRep ASA, BigRep PA6/66, BigRep PA12 CF, Water Soluble BigRep BVOH, and open for use of 3rd party materials

Large-Format

Versatile

Industrial-Grade

Features and Benefits

Create Massive, Production-Grade Parts at Low Costs

Your team might purchase a BigRep Pro to be the sole means of manufacturing plastic parts within your company. This printer can keep up with your production demands while meeting your strict accuracy requirements and speed expectations. It features German engineering that achieves precision and repeatability that your department needs. It can create massive, intricate parts out of plastic that are ready to be sold directly to consumers or used in-house.

Headache-Free 3D Printing

3D printing can be a tricky subject, especially with more industrial parts. Luckily, the BigRep Pro takes all of the guesswork out of 3D printing. As high-tech and advanced as this machine is, it’s also one of the easiest FDM 3D printers to use.

  • Quick-swap your build plate. The build plate and extruders come out with ease, allowing you to swap to a new pair and start your next print immediately.
  • Print without calibration. A rare offering in the 3D printing space, the BigRep Pro allows you to start printing accurately without any calibration at all, thanks to its fixed extruder.
  • Perfect for beginners. This machine is perfect for beginners and additive manufacturing experts alike.

Meets Production Demands

Whatever your production demands are, the BigRep Pro will most likely keep up. It obviously has a massive build volume, but it also achieves very fast printing speeds without giving up the accuracy and precision that you need.

  • High accuracy and precision. With accuracies as low as 0.002mm, you can tighten your tolerances without paying more for each part.
  • Non-stop printing. This machine is a workhorse, and can easily run around the clock without performance degradation.
  • Wide range of materials. With dozens of materials to choose from, and optional third-party compatibility, you can hand-pick the exact material you want your final parts to be made out of.

Quality You Deserve

The BigRep Pro is an incredibly high-quality 3D printer. With its industrial design and build, you can create parts with more reliability and accuracy. You’ll notice the attention to detail that went into building this titan of a 3D printer.

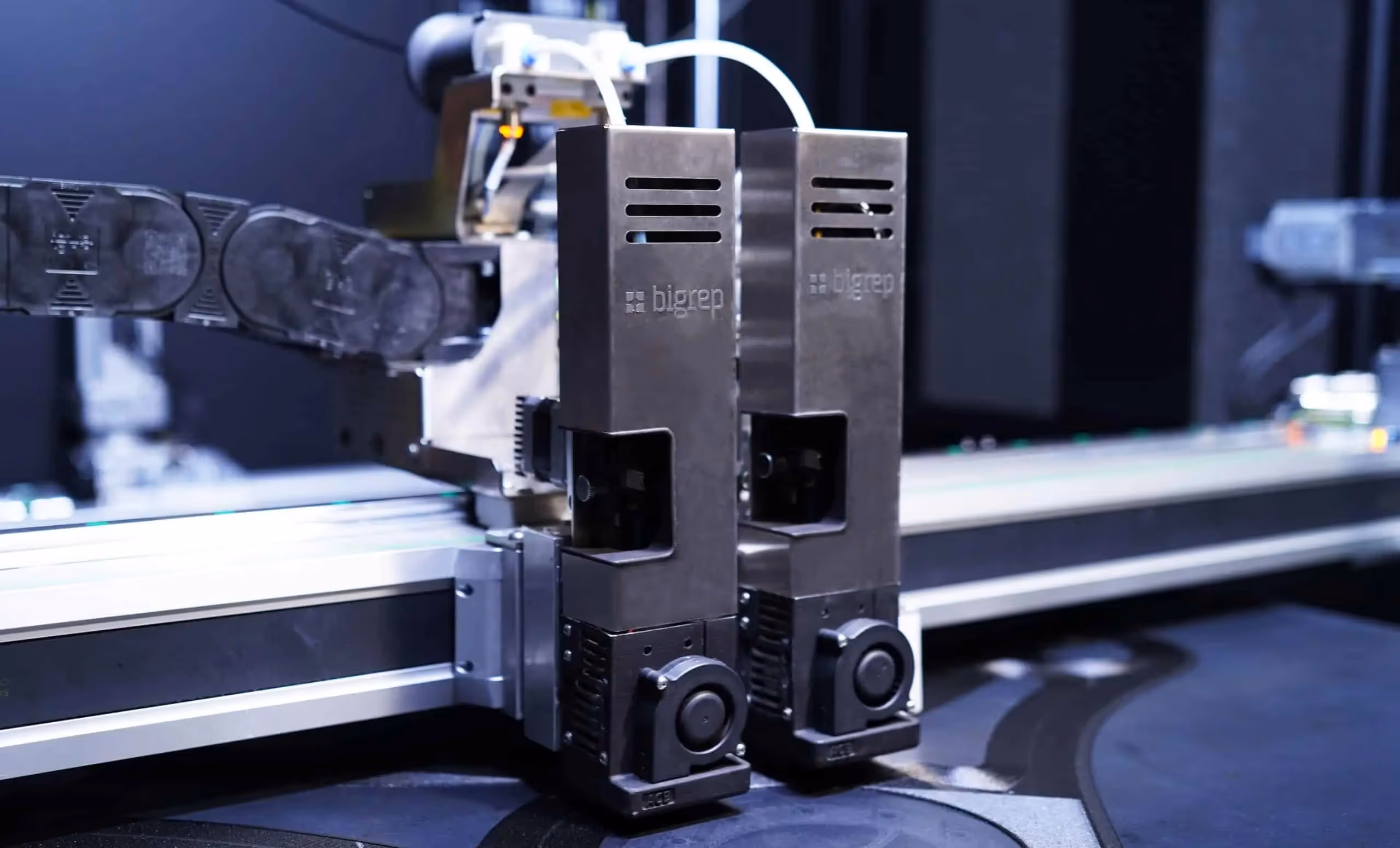

  • All-metal extruder. The all-metal extruder controls temperature deviation better, and allows for more intricate positioning — both of which help with your final part quality.
  • Industrial build quality. The build of this tool is staggering. It uses a majority of metal across the full machine, which is sturdy and removes unnecessary chatter while the machine runs.

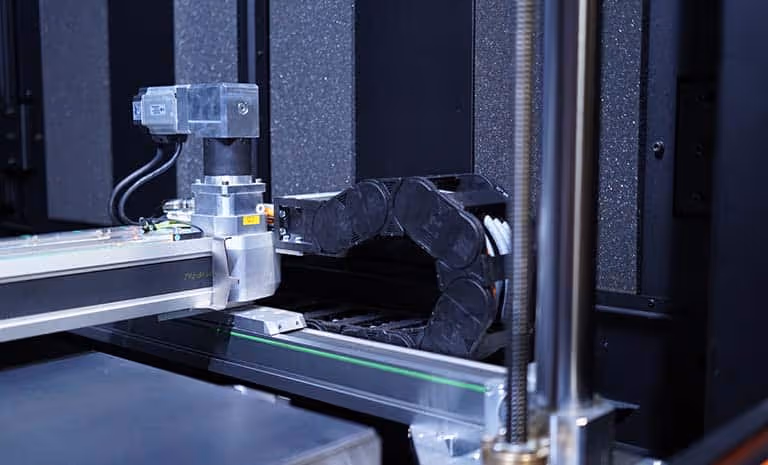

  • Bosch gantry. Bosch is known for precision and rigidity, and the BigRep Pro uses Bosch parts across the entire gantry. This results in precision that can rival a CNC milling machine.

More About This Technology

Fused deposition modeling (FDM) is one of the most common forms of 3D printing, and it’s largely used by hobbyists and DIYers. It has a special place in industrial settings as a low-cost way to make presentable 3D parts. You might use an FDM printer to create a scaled model home, an aesthetic representation of the final part, or a non-load-bearing component.

FDM works through an extruder on an XYZ (3-axis) gantry. Solid plastic is pushed against a hot nozzle which turns the plastic molten. The molten plastic is then carefully applied to the bed of your 3D printer. The 3-axis gantry will move around in X and Y, drawing a single layer of your 3D model. When it’s done, the nozzle will move up in the Z direction and create a new layer directly on top of the previously-extruded layer. This process continues until your full 3D-printed part is completed.

FDM printers are not used for load-bearing applications due to the weakness of the plastic material, and the weak points between each layer of the print. Even a small cyclic load can easily cause failure between layers.

You might find FDM-printed parts in the aerospace, medical, and consumer goods industries.

BigRep Pro Technical Specs

Printing technology:

Total printing area

Single printer head

Dual printer head

Mirror printing

Parallel mode printing:

Frame dimensions:

With all parts attached:

Shipping box:

Weight:

Shipping weight:

Build volume:

Layer resolution:

Position precision:

Filament diameter:

Nozzle diameter:

Print speed:

Filament types:

Ambient temperature:

Storage temperature:

Operating nozzle temperature:

Software package:

File types:

Supports:

Noise level:

Power consumption:

Machine Model

Build Chamber (XxYxZ)

Optical System

Spot Size

Max Scan Speed

Layer Thickness

Theoretical Printspeed

Material

Substrate heating

Power Supply

Gas Supply

Forming chamber oxygen content

Dimension (WxDxH)

Weight

Software

Input Data Format

Print technology

Fused Deposition Modeling (FDM)

Build Volume

1020 x 970 x 985 mm (40 x 38 x 38.5”)

Version

BigRep PRO.2

Materials

BigRep PLA, BigRep HI-TEMP, BigRep HI-TEMP CF, BigRep PRO HT, BigRep PETG, BigRep ASA, BigRep PA6/66, BigRep PA12 CF Water Soluble BigRep BVOH Open for use of 3rd party materials

Support Materials

Slicing Software

BigRep BLADE

Extruder Type

Fiber-Ready PRO ACE Extruder

Nozzle Type

Nozzle Diameter

0.6 mm, 1.0 mm

Max. speed | Max. acceleration

Speed | Acceleration (XY)

Max. 600 mm/s | Max. 5000 mm/s²

Layer Height

0.3 mm, 0.6 mm (Other layer heights supported through slicer software)

Size

Achievable Part Accuracy

±0.2mm or ±0.002mm/mm (whichever is greater)*

Filament diameter

Nozzle Temperature

Build Volume Temperature

Print Speed

Position Repeatability

Bed Surface

Bed Temperature

Bed Heating Time

Materials Storage

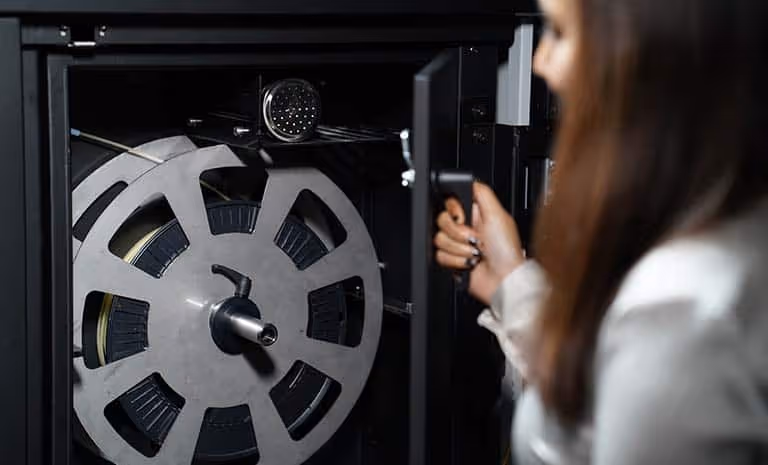

2x sealed Keep Dry filament chambers supporting up to 8 kg spools each

Monitoring

Machine Dimensions

x 1950 y 2500 z 2105 mm / x 77 y 98 z 83 inches (with tower)

Approx. Weight

Approx. 2160 kg (4762 lbs)

Max. temperature

Power

3 Phase 400V AC, PE, 16 A, 50 / 60 Hz

Connectivity

Optional Fume Extraction Airflow

Safety Certification

UL, CE, EC Machinery Directive 2006/42/EC Compliant

Print technology

Build volume (dual material)

Build volume

Assembled dimensions

Compatible filament diameter

Weight

Maximum power output

Layer resolution

XYZ resolution

Feeder type

Display

Extruder replacement

Print head

Nozzle diameters

Nozzle temperature

Nozzle heat-up time

Max heated chamber temp.

Max extruder temperature

Operating sound

Build plate leveling

Build plate

Build plate heat-up time

Operating ambient temperature

Non-operating temperature

Supplied free software

Supported OS

Plugin integration

Supported file types

File transfer

Certification

Security certification

Print technology

Build volume (dual material)

Build volume

Technology

Maximum Resolution (interpolated)

Optical Resolution

Maximum Scan Size

Maximum Image Area

XYZ resolution

Feeder type

Maximum Media Length

Maximum Media Thickness

Table conveyance system

Lamp angles

Lamp specifications

Maximum Scan Width

Maximum Media Width

Accuracy

3D effect

Color Space

Connectivity

Document weight

Software / Nextimage TWAIN

File formats

Operating System

CCD cameras

Depth of focus

Energy Star Compliant

Total number of pixels

Country of origin

Power supply

Weight

300 dpi

Recommended PC (not included)

File compatibility

Maximum Scan Length

Included software

Certifications/ Energy Star Compliant

Power consumption (ready/sleep/scan)

Certification

Security certification

No items found.
