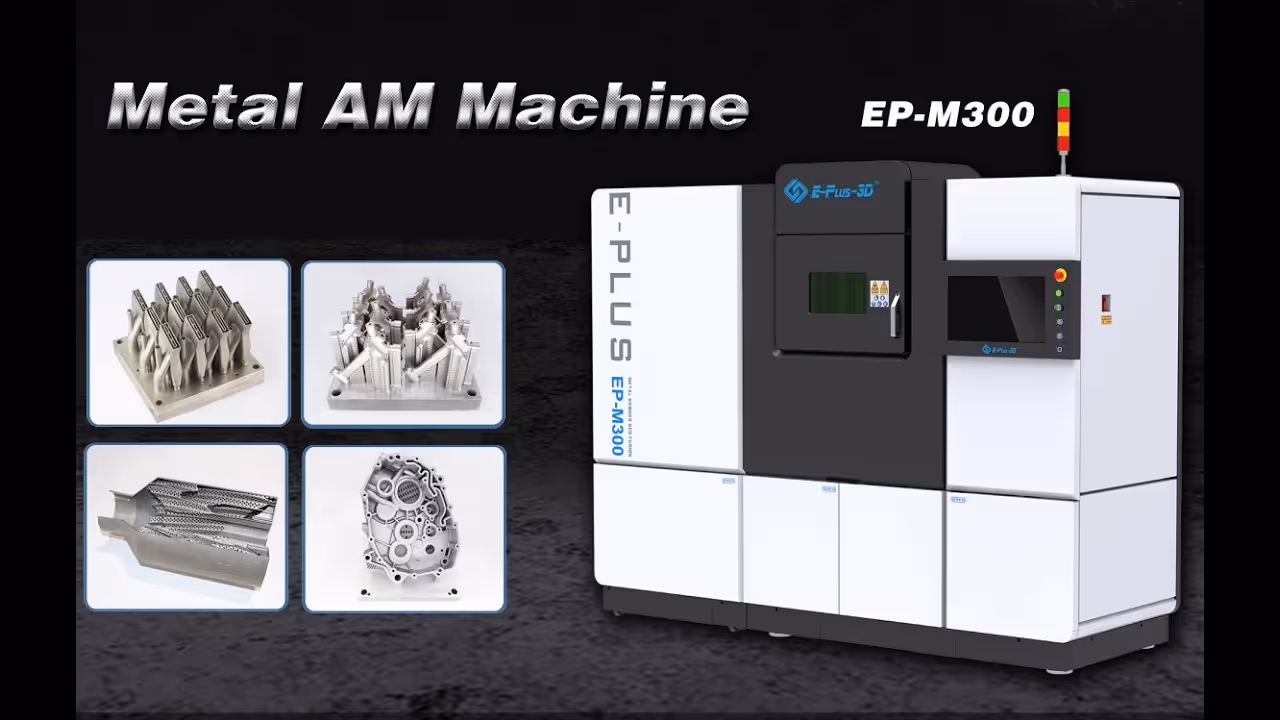

3D Printer

EP-M300 Metal

The EP-M300 is an even larger metal 3D printing on EP’s catalog. With a larger build volume, you can tackle larger projects and make even bigger 3D-printed parts out of nearly 100% pure metal by volume.

With the EP-M300, you get access to an even more powerful laser. It has an optional dual-laser configuration that generates 1000W of power. With more laser power, you can create parts faster, achieve better accuracy, and work on a larger range of materials.

Many engineers use the EP-M300 as their go-to in-house metal 3D printer. It can stand up to any challenge you throw at it, and you’ll be able to get consistent, reliable, and repeatable metal parts from this SLM 3D printer.

The EP-M300 will integrate into your existing workflow perfectly. It can either completely replace your need for a machine shop, or work in tandem with traditional machining.

Contact About This Product

EP-M300 Metal

The EP-M300 will integrate into your existing workflow perfectly. It can either completely replace your need for a machine shop, or work in tandem with traditional machining.

Contact About This Product

EP-M300 Metal

The EP-M300 will integrate into your existing workflow perfectly. It can either completely replace your need for a machine shop, or work in tandem with traditional machining.

Contact About This Product

Technical Features

Accuracy:

Volumetric Accuracy:

Measurement resolution:

Measurement rate:

Part size range (recommended):

ISO 17025 Accreditation

Scan-to-mesh in seconds

Worldwide Support

Patented Technology

Patented Technology

3D Printing Technology: Selective laser melting (SLM)

Build Volume (X x Y x Z, mm): 300 x 300 x 450 mm

Layer Thickness: 0.02mm

Compatible Printing Materials: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.

Industrial-grade

User-friendly

Highly reliable

Features and Benefits

Industry-Preferred Functionality and Reliability

Like any other 3D printer from EP, the EP-M300 offers a lot of functionality and reliability for industrial applications just like yours. Any engineering department can benefit from the EP-M300, since it’s so versatile. With fewer maintenance and service tasks over time, you won’t have to worry about slowdowns when you want to make a part. It’s as simple as turning on the machine and hitting “go”, then your new parts will come to life.

Versatility You Deserve

Industrial-grade 3D printers can lead to some sticker shock until you realize how useful the technology is. With the EP-M300, the price is more than justified with the versatility you get with this machine. It can handle complex projects from any industry.

Wide range of material options. Thanks to the powerful laser, you can use a larger range of material options, allowing you to hand-pick the material properties of your parts.
24/7 printing availability. These machines can run with no supervision, unlocking around-the-clock printing capabilities. ‍
Make new or upgraded parts quickly. You can easily go from an initial concept to a finished part in less than 24 hours with the EP-M300.

Incredibly Easy to Use

The EP-M300 is designed for people who don’t have previous printing experience. It’s a great option to bring into your engineering department. With the EP-M300, all of the guesswork is taken out of 3D printing, allowing you to make parts sooner without a learning curve.

Touchscreen with instructions. The touchscreen tells you everything you need to know, and the prompts guide you through each printing process.
One-touch printing. With the 3D STL file loaded into your machine, you can start printing a new part by pressing a single button.‍
Great for beginners or experts alike. Whether you have no experience or 10 years of experience, the EP-M300 will allow you to make high-quality metal parts.

Get Metal Parts Faster

Getting metal parts delivered to your building can be an expensive and time-consuming process without the EP-M300. Once you have your own metal SLM 3D printer, you can get these parts even faster and with fewer headaches.

Perfect for prototypes. You can use the EP-M300 to create a dozen iterations of the same prototype within the same week, allowing you to expedite the full prototyping phase.
Handle low-volume production with ease. The same machine can also handle production-quality 3D prints so you can handle your production in-house.‍
Avoid using machine shops altogether. A lot of people rely on their EP-M300 instead of a machine shop, saving a ton of time and money on each part.

More About This Technology

Selective laser melting (SLM) metal 3D printing is the newest form of 3D printing that is reserved almost exclusively for industrial applications. These printers are more expensive to purchase and have higher operating costs, but they create parts made out of pure metal. A bed of metal powder sits directly under a high-powered laser on an XY (2-axis) gantry.

When the laser shines on the powdered metal, the metal fuses together and becomes molten, then solid. The head of an SLM 3D printer will move around the bed of metal powder, fusing together your part one layer at a time. The bed then moves down a little, a new layer of metal powder is applied, and the laser continues working on the next layer. This continues until your part is finished.

After the part is fused together, it goes into an oven to cure and get rid of any additives in the metal powder. After some time, you’re left with a part made completely out of metal.

SLM Metal 3D printers rival traditional CNC machining, and the end result can be seemingly identical. However, it’s much faster, typically more affordable, and can run 24/7 with very little supervision, unlike a machine shop.

You can find parts made from SLM Metal 3D printers in almost any industry. Wherever CNC machining is used, SLM Metal printing can be the substitute. Examples include the aerospace, automotive, medical, industrial, and defense industries.

EP-M300 Metal Technical Specs

Printing technology:

Total printing area

Single printer head

Dual printer head

Mirror printing

Parallel mode printing:

Frame dimensions:

With all parts attached:

Shipping box:

Weight:

Shipping weight:

Build volume:

Layer resolution:

Position precision:

Filament diameter:

Nozzle diameter:

Print speed:

Filament types:

Ambient temperature:

Storage temperature:

Operating nozzle temperature:

Software package:

File types:

Supports:

Noise level:

Power consumption:

Machine Model

EP-M300

Build Chamber (XxYxZ)

300 x 300 x 450 mm (11.81 x 11.81 x 17.72 in)(height incl. build plate)

Optical System

Fiber Laser, 500 W / 1000 W (single or dual-laser optional)

Spot Size

70~120 µm

Max Scan Speed

8 m/s

Layer Thickness

20~120 µm

Theoretical Printspeed

Up to 95 cm³/h

Material

Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.

Substrate heating

Power Supply

380 V, 31 A, 50 / 60 Hz, 7 kW

Gas Supply

Ar / N₂

Forming chamber oxygen content

≤100 ppm

Dimension (WxDxH)

2990 x 1320 x 2590 mm

Weight

2900 kg

Software

EP-Hatch, EP Control

Input Data Format

STL file or other convertible formats

Print technology

Build Volume

Version

Materials

Support Materials

Slicing Software

Extruder Type

Nozzle Type

Nozzle Diameter

Max. speed | Max. acceleration

Speed | Acceleration (XY)

Layer Height

Size

Achievable Part Accuracy

Filament diameter

Nozzle Temperature

Build Volume Temperature

Print Speed

Position Repeatability

Bed Surface

Bed Temperature

Bed Heating Time

Materials Storage

Monitoring

Machine Dimensions

Approx. Weight

STL file or other convertible formats

Max. temperature

STL file or other convertible formats

Power

Connectivity

Optional Fume Extraction Airflow

Safety Certification

Print technology

Build volume (dual material)

Build volume

Assembled dimensions

Compatible filament diameter

Weight

Maximum power output

Layer resolution

XYZ resolution

Feeder type

Display

Extruder replacement

Print head

Nozzle diameters

Nozzle temperature

Nozzle heat-up time

Max heated chamber temp.

Max extruder temperature

Operating sound

Build plate leveling

Build plate

Build plate heat-up time

Operating ambient temperature

Non-operating temperature

Supplied free software

Supported OS

Plugin integration

Supported file types

File transfer

Certification

Security certification

Print technology

Build volume (dual material)

Build volume

Technology

Maximum Resolution (interpolated)

Optical Resolution

Maximum Scan Size

Maximum Image Area

XYZ resolution

Feeder type

Maximum Media Length

Maximum Media Thickness

Table conveyance system

Lamp angles

Lamp specifications

Maximum Scan Width

Maximum Media Width

Accuracy

3D effect

Color Space

Connectivity

Document weight

Software / Nextimage TWAIN

File formats

Operating System

CCD cameras

Depth of focus

Energy Star Compliant

Total number of pixels

Country of origin

Power supply

Weight

300 dpi

Recommended PC (not included)

File compatibility

Maximum Scan Length

Included software

Certifications/ Energy Star Compliant

Power consumption (ready/sleep/scan)

Certification

Security certification
