3D Printer

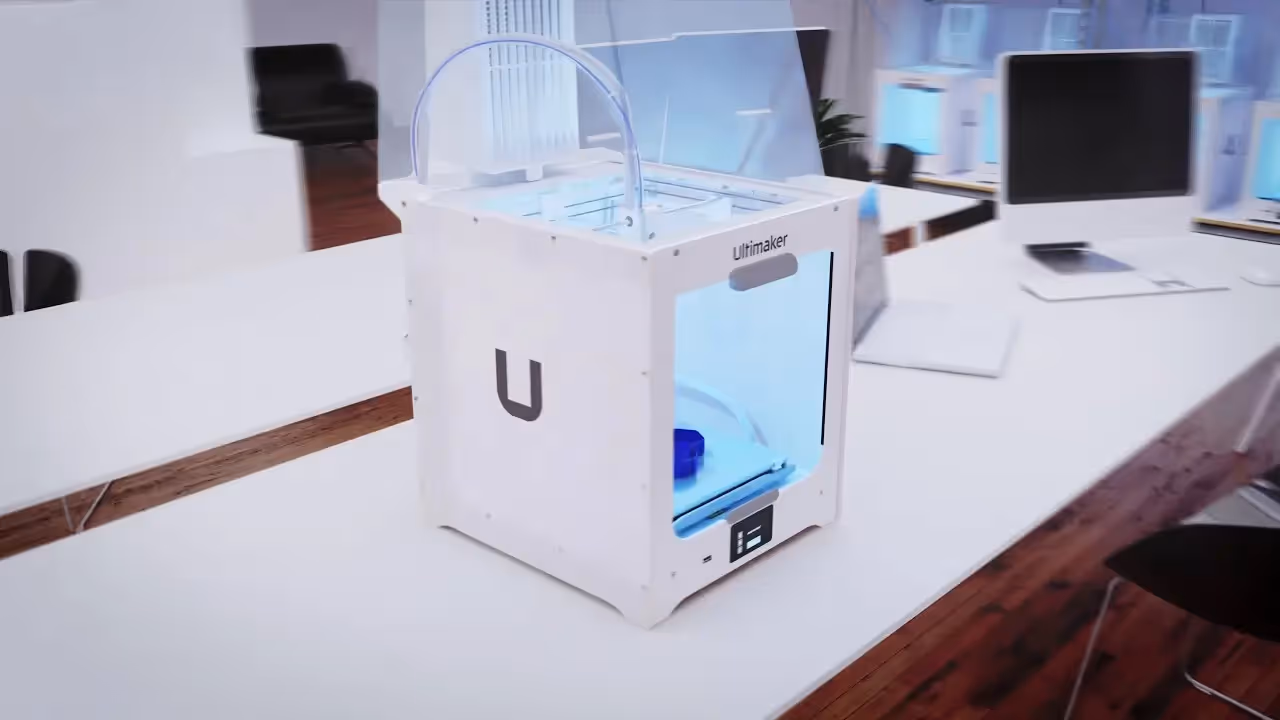

UltiMaker 2+ Connect

The UltiMaker 2+ Connect is the most affordable option on UltiMaker’s sales catalog. This option is perfect for any engineering department who wants to try out FDM printing without blowing their budget on a printer that they might not use.

As a whole, UltiMaker makes printers for engineers. The printers themselves are a lot better than everyday residential FDM printers that you might find. Even though the UltiMaker 2+ Connect is their most affordable, it has a ton of usability and versatility that you’ll appreciate.

It’s an incredibly easy 3D printer to use. You can easily swap out the hotend, the touchscreen prompts are easy to understand, and the extrusion process is super simple. In reality, all you need is an .STL file, and you can start making parts with the UltiMaker 2+ Connect.

We should mention that the build volume is on the smaller end, so this printer only works if you’re looking to make smaller parts. For a large build volume, you would have to upgrade to one of UltiMaker’s more expensive models.

With that said, the UltiMaker 2+ Connect is still a great option for any engineering department. You can use it as often or infrequently as you’d like, and it will run without faults.

Contact About This Product

UltiMaker 2+ Connect

The UltiMaker 2+ Connect is the most affordable option on UltiMaker’s sales catalog. This option is perfect for any engineering department who wants to try out FDM printing without blowing their budget on a printer that they might not use.

As a whole, UltiMaker makes printers for engineers. The printers themselves are a lot better than everyday residential FDM printers that you might find. Even though the UltiMaker 2+ Connect is their most affordable, it has a ton of usability and versatility that you’ll appreciate.

It’s an incredibly easy 3D printer to use. You can easily swap out the hotend, the touchscreen prompts are easy to understand, and the extrusion process is super simple. In reality, all you need is an .STL file, and you can start making parts with the UltiMaker 2+ Connect.

We should mention that the build volume is on the smaller end, so this printer only works if you’re looking to make smaller parts. For a large build volume, you would have to upgrade to one of UltiMaker’s more expensive models.

With that said, the UltiMaker 2+ Connect is still a great option for any engineering department. You can use it as often or infrequently as you’d like, and it will run without faults.

Contact About This Product

UltiMaker 2+ Connect

The UltiMaker 2+ Connect is the most affordable option on UltiMaker’s sales catalog. This option is perfect for any engineering department who wants to try out FDM printing without blowing their budget on a printer that they might not use.

As a whole, UltiMaker makes printers for engineers. The printers themselves are a lot better than everyday residential FDM printers that you might find. Even though the UltiMaker 2+ Connect is their most affordable, it has a ton of usability and versatility that you’ll appreciate.

It’s an incredibly easy 3D printer to use. You can easily swap out the hotend, the touchscreen prompts are easy to understand, and the extrusion process is super simple. In reality, all you need is an .STL file, and you can start making parts with the UltiMaker 2+ Connect.

We should mention that the build volume is on the smaller end, so this printer only works if you’re looking to make smaller parts. For a large build volume, you would have to upgrade to one of UltiMaker’s more expensive models.

With that said, the UltiMaker 2+ Connect is still a great option for any engineering department. You can use it as often or infrequently as you’d like, and it will run without faults.

Contact About This Product

Technical Features

Accuracy:

Volumetric Accuracy:

Measurement resolution:

Measurement rate:

Part size range (recommended):

ISO 17025 Accreditation

Scan-to-mesh in seconds

Worldwide Support

Patented Technology

Patented Technology

3D Printing Technology: Fused deposition modeling (FDM)

Build Volume (X x Y x Z, mm): 223 x 220 x 205 mm

Build Accuracy: 12.5, 12.5, 5 micron

Layer Thickness: 0.2mm

Compatible Printing Materials: 20+ materials

High-precision

Industrial-grade

Easy-to-use

Features and Benefits

Accuracy, Versatility, and Reliability Like No Other

The thing that we love about UltiMaker as a whole is that their 3D printers are very dependable. We always recommend this brand to engineering departments, because UltiMaker makes printers that can keep up with your demands and exceed your expectations. Their accuracy alone can sell any of these printers, since they can hit tighter tolerances than any other printers at the same price point. All the while, the UltiMaker 2+ Connect offers versatility and usability that you won’t find elsewhere.

A Great Entry-Level Option

A lot of additive manufacturing experts agree that the UltiMaker 2+ Connect is a great entry-level option for any engineer. It’s an FDM 3D printer that’s affordable, powerful, and easy to use — a combination that poises it as a great addition to your engineering department.

  • Intuitive design. The machine itself is really easy to use and troubleshoot. There are no secret sensors or mechanisms that can give you problems.
  • Easy to start new prints. You can start a new print remotely or with a single click on the machine, allowing you to start new prints with ease.
  • Low-cost but powerful. As a beginner, you might not want to spend a lot of money on a machine you might not use. The UltiMaker 2+ Connect gives you full-scale printing functionality in a low-cost package.

Make Parts Faster

FDM 3D printing is a great way to speed up your production workflows. Using the UltiMaker 2+ Connect allows you to avoid dimensioning parts in a manufacturing drawing altogether — you can go directly from a 3D CAD file to a printed object with ease.

  • Idea to part in 24 hours. It’s easy to go from a rough idea to a finished product within 24 hours, and that includes any prototyping you need to do.
  • Expedite your time to market. For new products, the UltiMaker 2+ Connect can greatly expedite your prototyping, iteration, and production phases.
  • Prototype with ease. This FDM printer makes prototyping effortless. You can quickly make a part, test it, revise the 3D CAD model, and then make another part for testing in a matter of hours.

Save Money on Production

Not only is the UltiMaker 2+ Connect faster than traditional manufacturing methods, but it can save you a ton of money. It saves money on saved manpower, low operating costs, and time saved on the drafting table.

  • Bring plastic production in-house. The UltiMaker 2+ Connect is fully capable of handling your low-volume plastic production. You can simplify your supply chain and optimize your part quality by bringing this process in-house.
  • Very low operating cost. The operating cost is simply the cost of material and the low cost of residential-grade electric — both of which are incredibly inexpensive, resulting in very low operating costs.
  • No supervision required. With the right parameters and setup, you can start a print and walk away until it’s done. This saves you time and frees up your engineers.

More About This Technology

Fused deposition modeling (FDM) is one of the most common forms of 3D printing, and it’s largely used by hobbyists and DIYers. It has a special place in industrial settings as a low-cost way to make presentable 3D parts. You might use an FDM printer to create a scaled model home, an aesthetic representation of the final part, or a non-load-bearing component.

FDM works through an extruder on an XYZ (3-axis) gantry. Solid plastic is pushed against a hot nozzle which turns the plastic molten. The molten plastic is then carefully applied to the bed of your 3D printer. The 3-axis gantry will move around in X and Y, drawing a single layer of your 3D model. When it’s done, the nozzle will move up in the Z direction and create a new layer directly on top of the previously-extruded layer. This process continues until your full 3D-printed part is completed.

FDM printers are not used for load-bearing applications due to the weakness of the plastic material, and the weak points between each layer of the print. Even a small cyclic load can easily cause failure between layers.

You might find FDM-printed parts in the aerospace, medical, and consumer goods industries.

UltiMaker 2+ Connect Technical Specs

Printing technology:

Total printing area

Single printer head

Dual printer head

Mirror printing

Parallel mode printing:

Frame dimensions:

With all parts attached:

Shipping box:

Weight:

Shipping weight:

Build volume:

Layer resolution:

Position precision:

Filament diameter:

Nozzle diameter:

Print speed:

Filament types:

Ambient temperature:

Storage temperature:

Operating nozzle temperature:

Software package:

File types:

Supports:

Noise level:

Power consumption:

Machine Model

Build Chamber (XxYxZ)

Optical System

Spot Size

Max Scan Speed

Layer Thickness

Theoretical Printspeed

Material

Substrate heating

Power Supply

Gas Supply

Forming chamber oxygen content

Dimension (WxDxH)

Weight

Software

Input Data Format

Print technology

Build Volume

Version

Materials

Support Materials

Slicing Software

Extruder Type

Nozzle Type

Nozzle Diameter

Max. speed | Max. acceleration

Speed | Acceleration (XY)

Layer Height

Size

Achievable Part Accuracy

Filament diameter

Nozzle Temperature

Build Volume Temperature

Print Speed

Position Repeatability

Bed Surface

Bed Temperature

Bed Heating Time

Materials Storage

Monitoring

Machine Dimensions

Approx. Weight

Max. temperature

Power

Connectivity

Optional Fume Extraction Airflow

Safety Certification

Print technology

Fused Deposition Modeling (FDM)

Build volume (dual material)

Build volume

223 x 220 x 205 mm (8.7 x 8.6 x 8 inches)

Assembled dimensions

342 x 460 x 580 mm (13.5 x 18.1 x 22.8 inches)

Compatible filament diameter

2.85 mm

Weight

10.3 kg (22.7 lbs)

Maximum power output

221 W

Layer resolution

0.02mm

XYZ resolution

12.5, 12.5, 5 micron

Feeder type

Geared feeder

Display

2.4-inch (6 cm) TFT color touchscreen

Extruder replacement

Print head

Single extrusion with swappable nozzle and dual cooling fans

Nozzle diameters

0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Nozzle temperature

180 - 260 °C

Nozzle heat-up time

< 2 minutes

Max heated chamber temp.

Max extruder temperature

Operating sound

< 50 dBA

Build plate leveling

Assisted leveling

Build plate

20 - 110 °C heated glass build plate

Build plate heat-up time

< 5 minutes (from 20 to 60 °C)

Operating ambient temperature

15 - 32 °C (59 - 90 °F)

Non-operating temperature

0 - 32 °C (32 - 90 °F)

Supplied free software

UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools

Supported OS

MacOS, Windows, and Linux

Plugin integration

SolidWorks, Siemens NX, Autodesk Inventor

Supported file types

UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP

File transfer

Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

Security certification

ISO/IEC 27001 certified Learn more (https://support.makerbot.com/s/article/1667411337398)

Print technology

Fused Deposition Modeling (FDM)

Build volume (dual material)

Build volume

223 x 220 x 205 mm (8.7 x 8.6 x 8 inches)

Technology

Maximum Resolution (interpolated)

Optical Resolution

Maximum Scan Size

Maximum Image Area

XYZ resolution

Feeder type

Maximum Media Length

Maximum Media Thickness

Table conveyance system

Lamp angles

Lamp specifications

Maximum Scan Width

Maximum Media Width

Accuracy

3D effect

Color Space

Connectivity

Document weight

Software / Nextimage TWAIN

File formats

Operating System

CCD cameras

Depth of focus

Energy Star Compliant

Total number of pixels

Country of origin

Power supply

Weight

300 dpi

Recommended PC (not included)

File compatibility

Maximum Scan Length

Included software

Certifications/ Energy Star Compliant

Power consumption (ready/sleep/scan)

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

Security certification

ISO/IEC 27001 certified Learn more (https://support.makerbot.com/s/article/1667411337398)

No items found.

Why Buy from CAD/CAM Services?

As an authorized UltiMaker reseller, people often wonder why they should choose us when it comes to their next FDM 3D printer purchase. It’s simple, really — our team is filled with 3D printing experts. We’ve been making 3D CAD files and 3D printing parts for as long as we can remember. As a result, our massive team knows a ton about this technology. We can answer all of your 3D printing questions, expedite the full buying process, and even help you select the perfect 3D printer for your application. We’re here to help you, so feel free to leverage our expertise and choose CAD/CAM Services.

We provide:

  • 3D Scanning
  • 2D and 3D Design Services
  • Engineering Simulation
  • 3D Printable Models from Scratch
  • 3D Print Optimization
  • Rapid Additive Manufacturing Printing Services

We also sell industry-leading 3D printers from top manufacturers:

  • HP (Jet Fusion)
  • BigRep
  • Shining3D, plastic and metal
  • EPlus3D (EP), plastic and metal
  • UltiMaker
  • CraftBot
Contact About This Product
