3D Printer

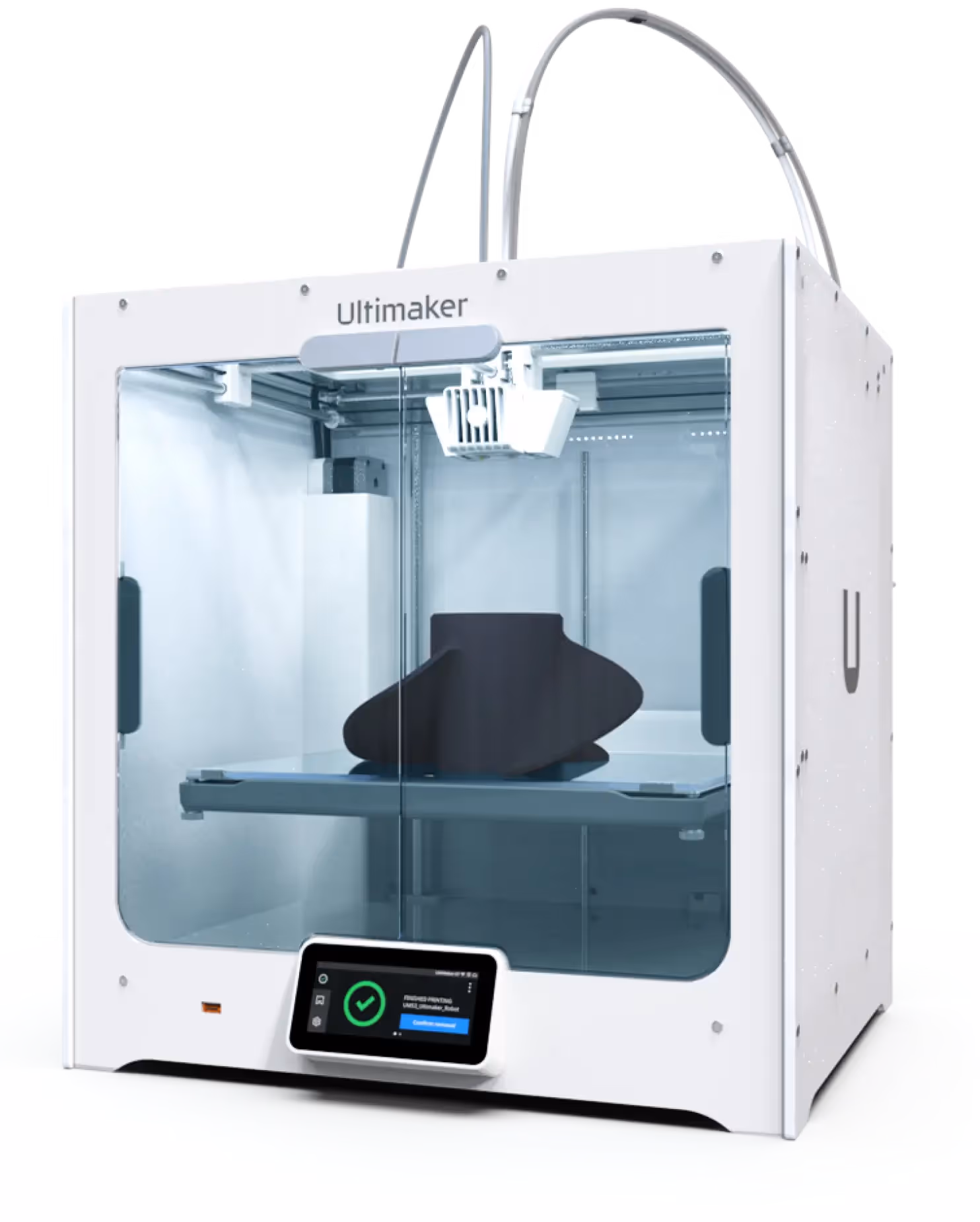

UltiMaker S5

With a larger build volume and more impressive capabilities, the UltiMaker S5 offers even more bang for your buck. This engineering-grade FDM 3D printer is sure to check all of the boxes on your 3D printing wish list: It has an impressive build volume, the ability to print over 280 different materials, a dual-extruder setup, and an award-winning user interface.

All-in-all, the UltiMaker S5 is a great pick for an engineer who wants more out of their FDM 3D printer. This option from UltiMaker is affordably priced, and it allows you to unlock precision and repeatability that you won’t find elsewhere at this price point.

The printer is a plug-and-play printer that is basically ready to use out of the box. Once the short initial setup is done, you can start 3D printing without issues.

This exact printer is used at massive companies from NASA to Volkswagen, and it always stands up to the challenge. The UltiMaker S5 is an easy-to-use printer that can fit comfortably on any desk or table. Since the machine is fully enclosed, it can run in a dusty corner and still create high-quality parts with ease.

With 1450 cubic inches of build volume, the UltiMaker S5 can make large parts with ease. These parts can be sold directly to consumers, used as prototypes, or get installed directly into your operation.

Contact About This Product

UltiMaker S5

The printer is a plug-and-play printer that is basically ready to use out of the box. Once the short initial setup is done, you can start 3D printing without issues.

Contact About This Product

UltiMaker S5

The printer is a plug-and-play printer that is basically ready to use out of the box. Once the short initial setup is done, you can start 3D printing without issues.

Contact About This Product

Technical Features

Accuracy:

Volumetric Accuracy:

Measurement resolution:

Measurement rate:

Part size range (recommended):

ISO 17025 Accreditation

Scan-to-mesh in seconds

Worldwide Support

Patented Technology

Patented Technology

3D Printing Technology: Fused deposition modeling (FDM)

Build Volume (X x Y x Z, mm): 330 x 240 x 300 mm

Build Accuracy: 6.9, 6.9, 2.5 micron

Layer Thickness: 0.02mm

Compatible Printing Materials: 280+ materials

High-precision

Industrial-grade

Easy-to-use

Features and Benefits

Accuracy, Versatility, and Reliability Like No Other

As an engineer, you need a 3D printer that you can count on. With the UltiMaker S5, this is no problem. UltiMaker seems to only make FDM 3D printers that are reliable and highly versatile. You can handle all of your plastics manufacturing with a single 3D printer. Plus, it helps that the UltiMaker S5 offers some of the best printing accuracy on the market. In other words, this one printer can keep up with your production schedule and create engineer-quality parts.

Make Intricate Parts

One of the best aspects of the UltiMaker S5 is that you can make incredibly intricate parts with it. This goes back to the accuracy and precision of the machine, but it also includes the fact that this high-quality printer has a second extruder.

Use water-soluble supports. The UltiMaker S5 can use supports that dissolve in water, allowing your part to have an incredible surface finish.
Embed parts in a paused print. You can also pause your print and insert objects like bolts, existing assemblies, or nuts to be encased in plastic for better functionality.‍
More design freedom. With the UltiMaker S5, you don’t have to worry about the machinability of your parts, which gets rid of a lot of design constraints you previously had.

Very Easy to Use

Using the UltiMaker S5 is incredibly easy. Someone with no prior 3D printing experience can follow the prompts on the touchscreen and create high-quality parts with no hassle.

Great user interface. The UltiMaker S5 has won awards for the usability of its touchscreen, and the prompts on the screen make each printing operation very easy.
Start a print with one touch. You can start a new print with a single button, or you can start it remotely with this IoT-enabled 3D printer.‍
Automatic calibration and leveling. You don’t have to worry about perfectly leveling the build plate, since the UltiMaker S5 does all of these startup tasks automatically.

A Versatile Option

Most engineers are also looking for a 3D printer that can tackle a wide range of projects. The UltiMaker S5 can do exactly that. It offers a lot of versatility, which makes the whole process easier for your department.

Use 280+ material options. More material options allow you to hand-pick the final look, quality, and performance of your parts.
A bigger build volume. With a generous 330 x 240 x 300 mm build volume, you can get more done with each print.‍
Make multi-material parts. With two extruders, you can weave two materials together in a single print, maximizing the material properties of your parts.

More About This Technology

Fused deposition modeling (FDM) is one of the most common forms of 3D printing, and it’s largely used by hobbyists and DIYers. It has a special place in industrial settings as a low-cost way to make presentable 3D parts. You might use an FDM printer to create a scaled model home, an aesthetic representation of the final part, or a non-load-bearing component.

FDM works through an extruder on an XYZ (3-axis) gantry. Solid plastic is pushed against a hot nozzle which turns the plastic molten. The molten plastic is then carefully applied to the bed of your 3D printer. The 3-axis gantry will move around in X and Y, drawing a single layer of your 3D model. When it’s done, the nozzle will move up in the Z direction and create a new layer directly on top of the previously-extruded layer. This process continues until your full 3D-printed part is completed.

FDM printers are not used for load-bearing applications due to the weakness of the plastic material, and the weak points between each layer of the print. Even a small cyclic load can easily cause failure between layers.

You might find FDM-printed parts in the aerospace, medical, and consumer goods industries.

UltiMaker S5 Technical Specs

Printing technology:

Total printing area

Single printer head

Dual printer head

Mirror printing

Parallel mode printing:

Frame dimensions:

With all parts attached:

Shipping box:

Weight:

Shipping weight:

Build volume:

Layer resolution:

Position precision:

Filament diameter:

Nozzle diameter:

Print speed:

Filament types:

Ambient temperature:

Storage temperature:

Operating nozzle temperature:

Software package:

File types:

Supports:

Noise level:

Power consumption:

Machine Model

Build Chamber (XxYxZ)

Optical System

Spot Size

Max Scan Speed

Layer Thickness

Theoretical Printspeed

Material

Substrate heating

Power Supply

Gas Supply

Forming chamber oxygen content

Dimension (WxDxH)

Weight

Software

Input Data Format

Print technology

Build Volume

Version

Materials

Support Materials

Slicing Software

Extruder Type

Nozzle Type

Nozzle Diameter

Max. speed | Max. acceleration

Speed | Acceleration (XY)

Layer Height

Size

Achievable Part Accuracy

Filament diameter

Nozzle Temperature

Build Volume Temperature

Print Speed

Position Repeatability

Bed Surface

Bed Temperature

Bed Heating Time

Materials Storage

Monitoring

Machine Dimensions

Approx. Weight

Max. temperature

Power

Connectivity

Optional Fume Extraction Airflow

Safety Certification

Print technology

Fused Deposition Modeling (FDM)

Build volume (dual material)

Build volume

330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)

Assembled dimensions

495 x 585 x 780 mm (19.5 x 23 x 30.7 inches)

Compatible filament diameter

2.85 mm

Weight

29.1 kg (64.2 lbs)

Maximum power output

500 W

Layer resolution

0.02mm

XYZ resolution

6.9, 6.9, 2.5 micron

Feeder type

Dual-geared feeder, reinforced for composite materials

Display

4.7-inch (11.9 cm) color touchscreen

Extruder replacement

Print head

Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.

Nozzle diameters

0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Nozzle temperature

180 - 280 °C

Nozzle heat-up time

< 2 minutes

Max heated chamber temp.

Max extruder temperature

Operating sound

< 51 dBA

Build plate leveling

Advanced active leveling

Build plate

Glass build plate

Build plate heat-up time

< 5 minutes (from 20 to 60 °C)

Operating ambient temperature

15 - 32 °C (59 - 90 °F)

Non-operating temperature

0 - 32 °C (32 - 90 °F)

Supplied free software

UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools

Supported OS

MacOS, Windows, and Linux

Plugin integration

SolidWorks, Siemens NX, Autodesk Inventor

Supported file types

UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP

File transfer

Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

Security certification

ISO/IEC 27001 certified Learn more (https://support.makerbot.com/s/article/1667411337398)

Print technology

Fused Deposition Modeling (FDM)

Build volume (dual material)

Build volume

330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)

Technology

Maximum Resolution (interpolated)

Optical Resolution

Maximum Scan Size

Maximum Image Area

XYZ resolution

Feeder type

Maximum Media Length

Maximum Media Thickness

Table conveyance system

Lamp angles

Lamp specifications

Maximum Scan Width

Maximum Media Width

Accuracy

3D effect

Color Space

Connectivity

Document weight

Software / Nextimage TWAIN

File formats

Operating System

CCD cameras

Depth of focus

Energy Star Compliant

Total number of pixels

Country of origin

Power supply

Weight

300 dpi

Recommended PC (not included)

File compatibility

Maximum Scan Length

Included software

Certifications/ Energy Star Compliant

Power consumption (ready/sleep/scan)

Certification

CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

Security certification

ISO/IEC 27001 certified Learn more (https://support.makerbot.com/s/article/1667411337398)
